ROHS Portable Nebulizer 20psi 12v Micro Diaphragm Pump

Product Categories

Guangdong Zhaoli Motor Group Co.,Ltd

Contact Now

Name: ROHS Portable Nebulizer 20psi 12v Micro Diaphragm Pump
Brand: Zhaoli
Price: 1 USD

Brand Name : Zhaoli

Model Number : DC3229PD01

Certification : CE, ROHS, REACH

Place of Origin : China

MOQ : 2000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000pcs per day

Delivery Time : 25-45 days

Packaging Details : cartons + pallets

Name : diaphragm pump

Rated voltage : 12VDC

Pump type : diaphragm air pump

Packing : Customized packing

Printing : Customized printing

Application : portable nebulizer/ blood pressure

Contact Now

Diaphragm Pum Mini Air Pump Motor For Portable Nebulizer 20psi

Diaphragm Pump Specification:

Rated voltage	12.0VDC
Operating voltage	10.0 - 14.4 VDC
Rated current	The highest current is less than 450mA while pressurizing with DC12.0V at 0mmHg.
Flow rate at no load	≥5.0L/min
Max pressure	The maximum pressure value shall be more than 20psi.
Noise	Putting a 5 cm sponge under the pump motor, and use noise meter with 30 cm away from the pump motor,the averaged noise shall be less then 62dB , with DC 12.0V from 0 to 20psi.

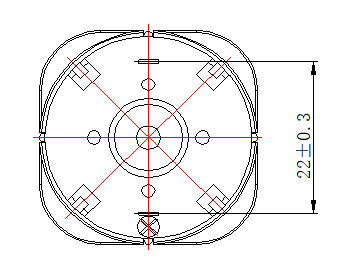

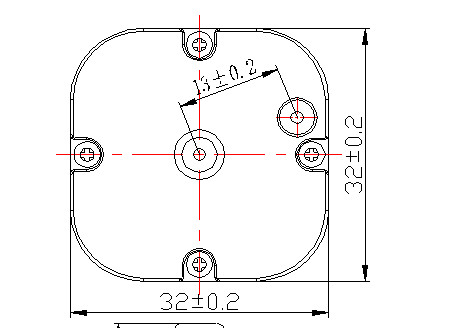

Drawing:

ROHS Portable Nebulizer 20psi 12v Micro Diaphragm Pump

Application: Portable nebulizer, Inhaler, Atomizer

ROHS Portable Nebulizer 20psi 12v Micro Diaphragm Pump
